General Information

• Brand: Samsung

• Model: Galaxy Z Fold 5

• Release Date: August 11, 2023

• Status: Available

• Weight: 253g

• Dimensions: 154.9 x 129.9 x 6.1 mm (unfolded), 154.9 x 67.1 x 13.4 mm (folded)

• Build: Glass front (Gorilla Glass Victus 2) (folded), plastic front (unfolded), glass back (Gorilla Glass Victus 2), aluminum frame

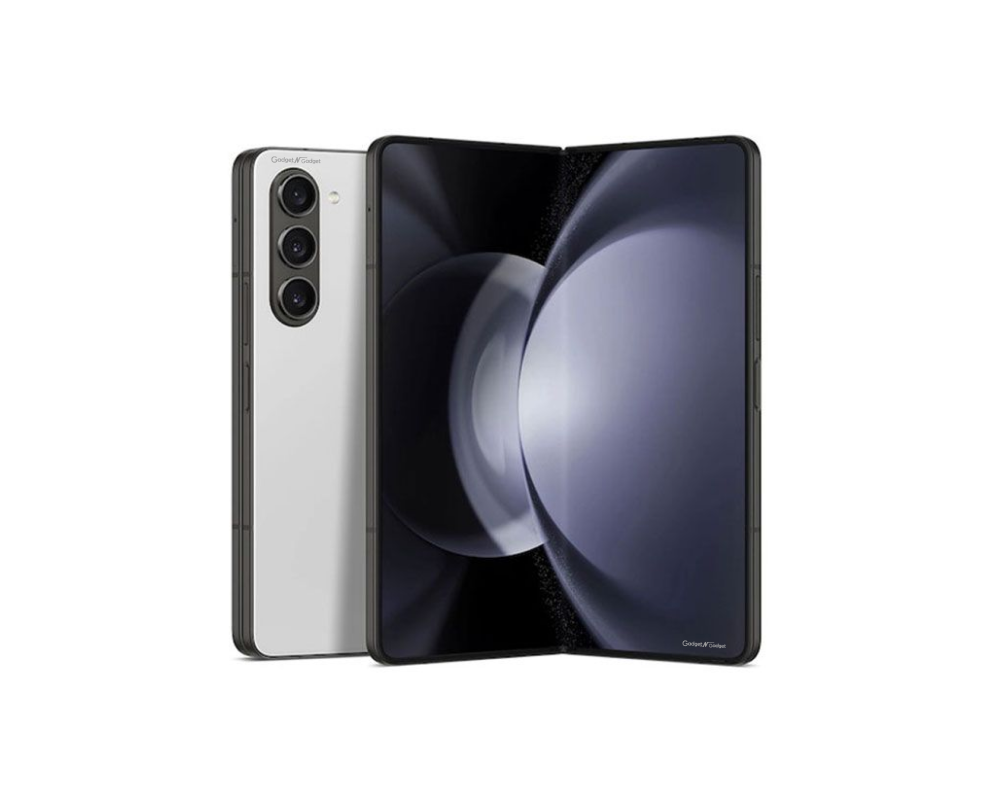

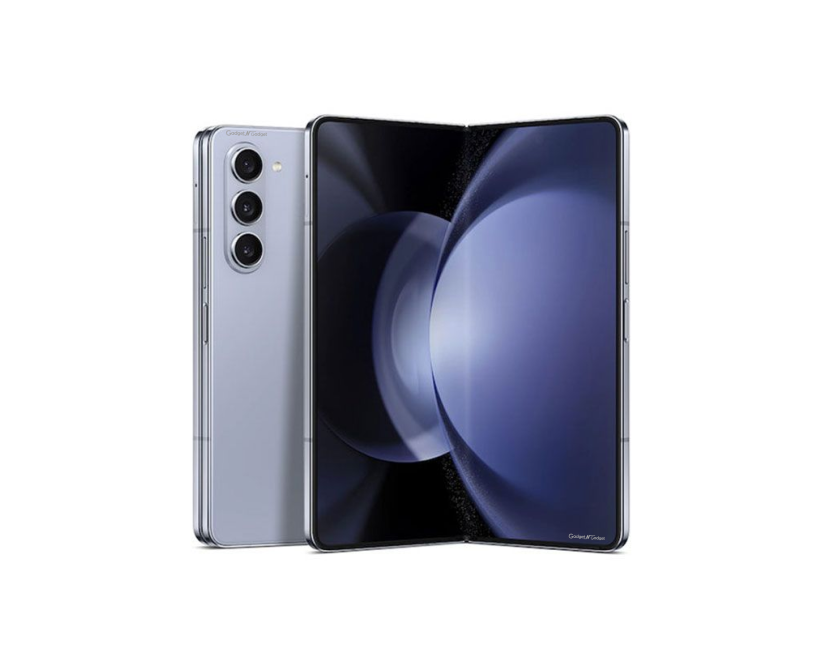

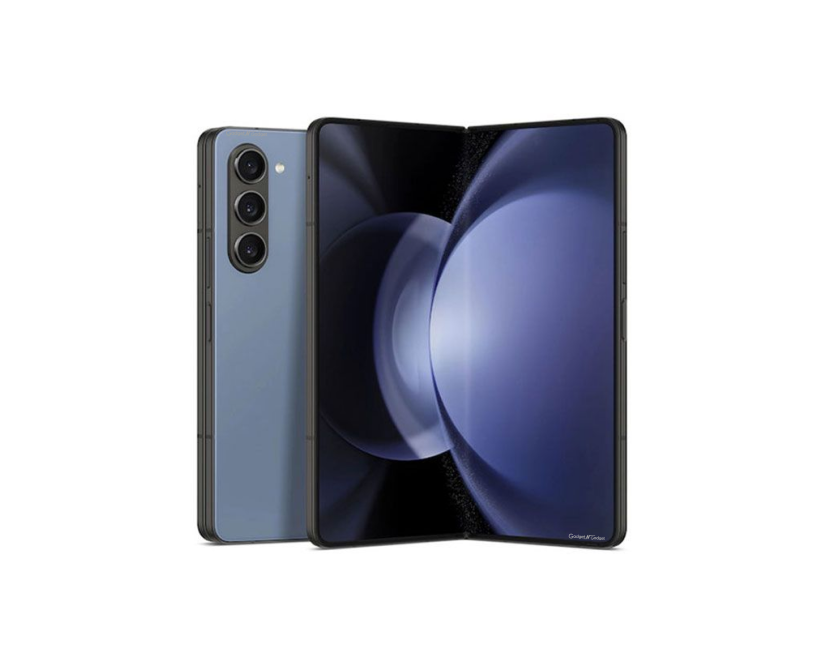

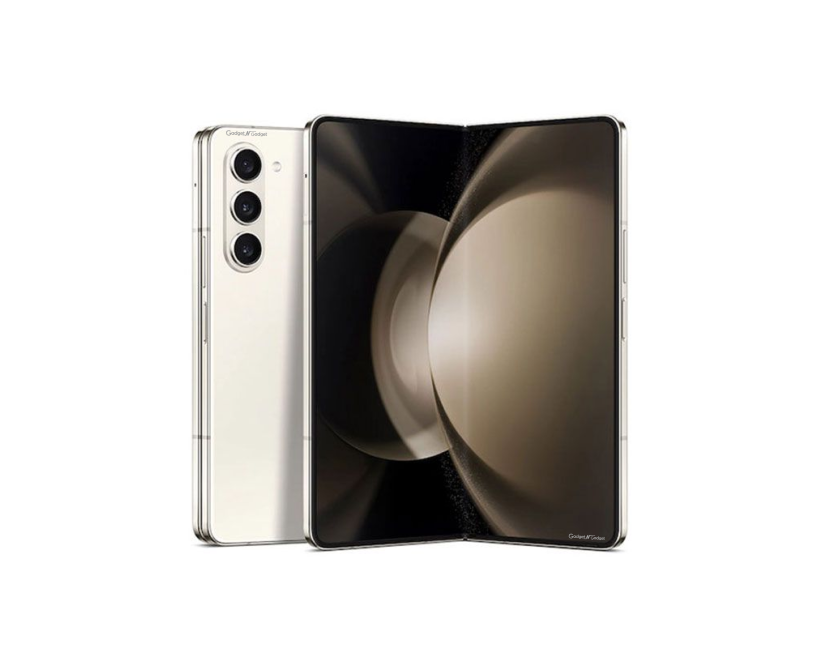

• Colors: Icy Blue, Cream, Phantom Black, Gray, Blue

• IP Rating: IPX8 (water-resistant up to 1.5m for 30 minutes)

Display

• Type: Foldable Dynamic AMOLED 2X, 120Hz, HDR10+

• Size: 7.6 inches (unfolded), 6.2 inches (cover display)

• Resolution: 2176 x 1812 pixels (unfolded), 2316 x 904 pixels (cover display)

• Protection: Corning Gorilla Glass Victus 2 (cover display)

Platform

• OS: Android 13, upgradable to Android 14, One UI 6.1.1

• Chipset: Qualcomm SM8550-AC Snapdragon 8 Gen 2 (4 nm)

• CPU: Octa-core (1x3.36 GHz Cortex-X3 & 2x2.8 GHz Cortex-A715 & 2x2.8 GHz Cortex-A710 & 3x2.0 GHz Cortex-A510)

• GPU: Adreno 740

Memory

• Internal Storage: 256GB, 512GB, 1TB

• RAM: 12GB

• Memory Type: UFS 4.0

• Card Slot: No

Cameras

• Main Camera: Triple 50 MP (wide, OIS, PDAF), 10 MP (telephoto, OIS, PDAF, 3x optical zoom), 12 MP (ultrawide)

• Features: LED flash, HDR, panorama

• Video: 8K@30fps, 4K@60fps, 1080p@60/240fps, HDR10+, gyro-EIS

• Selfie Camera: Single 4 MP (under-display), 10 MP (cover display)

• Video: 4K@30/60fps, 1080p@30/60fps

Battery

• Type: Li-Po 4400 mAh

• Charging: 25W wired, 50% in 30 min; 15W wireless; 4.5W reverse wireless

Connectivity

• Network: GSM / CDMA / HSPA / EVDO / LTE / 5G

• SIM: Nano-SIM + eSIM (max 2 at a time)

• Wi-Fi: 802.11 a/b/g/n/ac/6e, tri-band, Wi-Fi Direct

• Bluetooth: 5.3, A2DP, LE

• NFC: Yes

• Infrared: No

• USB: USB Type-C 3.2, OTG

Sensors

• Fingerprint: Side-mounted, optical

• Others: Accelerometer, gyro, proximity, compass, barometer

Audio

• Loudspeaker: Yes, with stereo speakers

• Audio Jack: No

• Audio Features: 32-bit/384kHz audio, tuned by AKG
